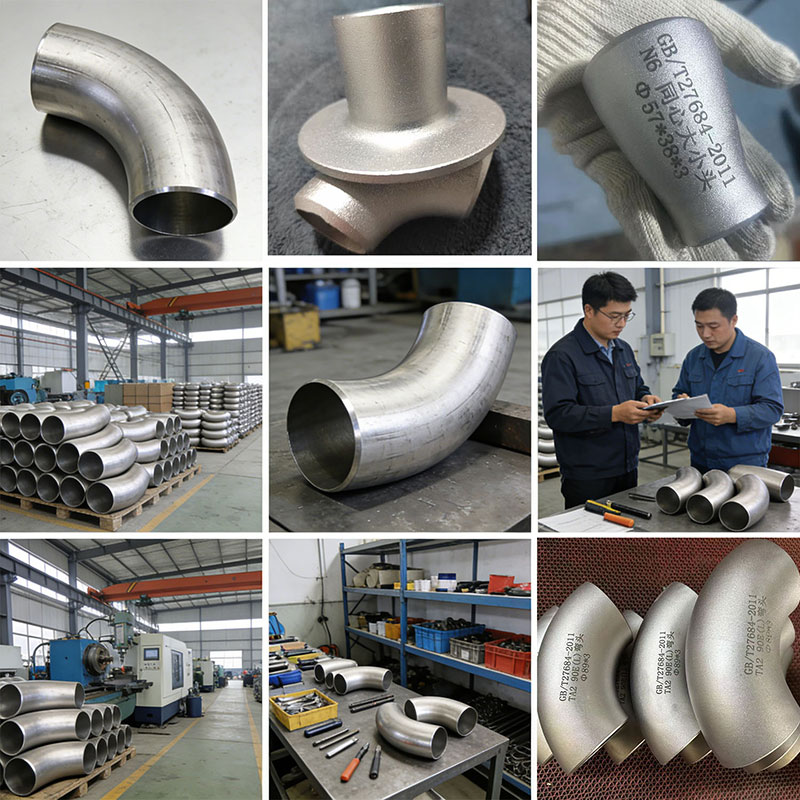

Titanium elbows are corrosion-resistant pipe fittings used to change the direction of piping systems. With excellent strength, lightweight properties, and superior resistance to aggressive media, they are widely used in chemical plants, marine systems, desalination equipment, and industrial pipelines.
| Product Name | Premium Titanium Elbow |
| Category | 90°/45° Elbow, Long Radius/Short Radius Elbow for Industrial & Chemical Applications |
| Material Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr5 ELI (Equivalent to Chinese GB grades: TA1, TA2, TA3, TA4, TC4, TC4 ELI) |
| Delivery Condition | M (Annealed) |
| Dimension Range | DN15 ~ DN1000, PN6 ~ PN40 (Customized Available) |
| Tolerance | h9, h8, h7 |
| Inspection & Testing | Chemical Analysis, Mechanical Test, UT, Dimensional Inspection |
| Packaging | Plastic Sleeve + Wooden Case (Export Standard) |
| Customization Service | Diameter, Length, Tolerance, Surface Finish MOQ |
| Applicable Standards | ASTM B363, ASTM B381, ASME B16.9, ASTM F67, ASTM F136; ISO 5832-2, ISO 5832-3; AMS 4928; GB/T 13810-2007 (Chinese National Standard) |
| Note 1: Chemical composition, mechanical properties, technological properties, dimensional tolerance, surface quality, etc. shall comply with the applicable international standards. Note 2: Customized sizes/specifications beyond the table are available upon mutual agreement between the supplier and the buyer. |
|
Our Product Range
| Product Name | Specifications |
| Titanium Ingot | Φ360mm ~ Φ1020mm, Maximum single weight of titanium & titanium alloy ingot: 12 tons |
| Titanium Bloom / Billet | (80 ~ 400)mm × (~1500)mm × (~4000)mm |
| Titanium Forging | Single weight ≤ 10,000 kg |
| Titanium Bar / Rod | Φ(6 ~ 500)mm × (~6000)mm |
| Hot Rolled Titanium Plate | (4 ~ 100)mm × (800 ~ 2600)mm × (2000 ~ 12000)mm |
| Cold Rolled Titanium Sheet | (0.4 ~ 4.0)mm × (800 ~ 1560)mm × (~6000)mm |
| Titanium Strip | (0.1 ~ 2.0)mm × (800 ~ 1560)mm × Custom Length (L) |
| Titanium Pipe / Tube | Φ(3 ~ 300)mm × (0.2 ~ 30)mm × (~15000)mm |
| Applicable Standards | ASTM, AMS, BS, DIN, JIS, GOST (TOCT), GB, GJB, etc. (International, National, Military & Customized Standards Available) |
| Material Grades | All titanium & titanium alloys compliant with national/international standards; Also available: zirconium, nickel, tungsten, molybdenum, tantalum, niobium and other rare metal processing materials |
To empower global industries with materials that endure. At Shaanxi Metres Metals, we don’t just sell metal; we provide the foundation for your most challenging engineering achievements.
